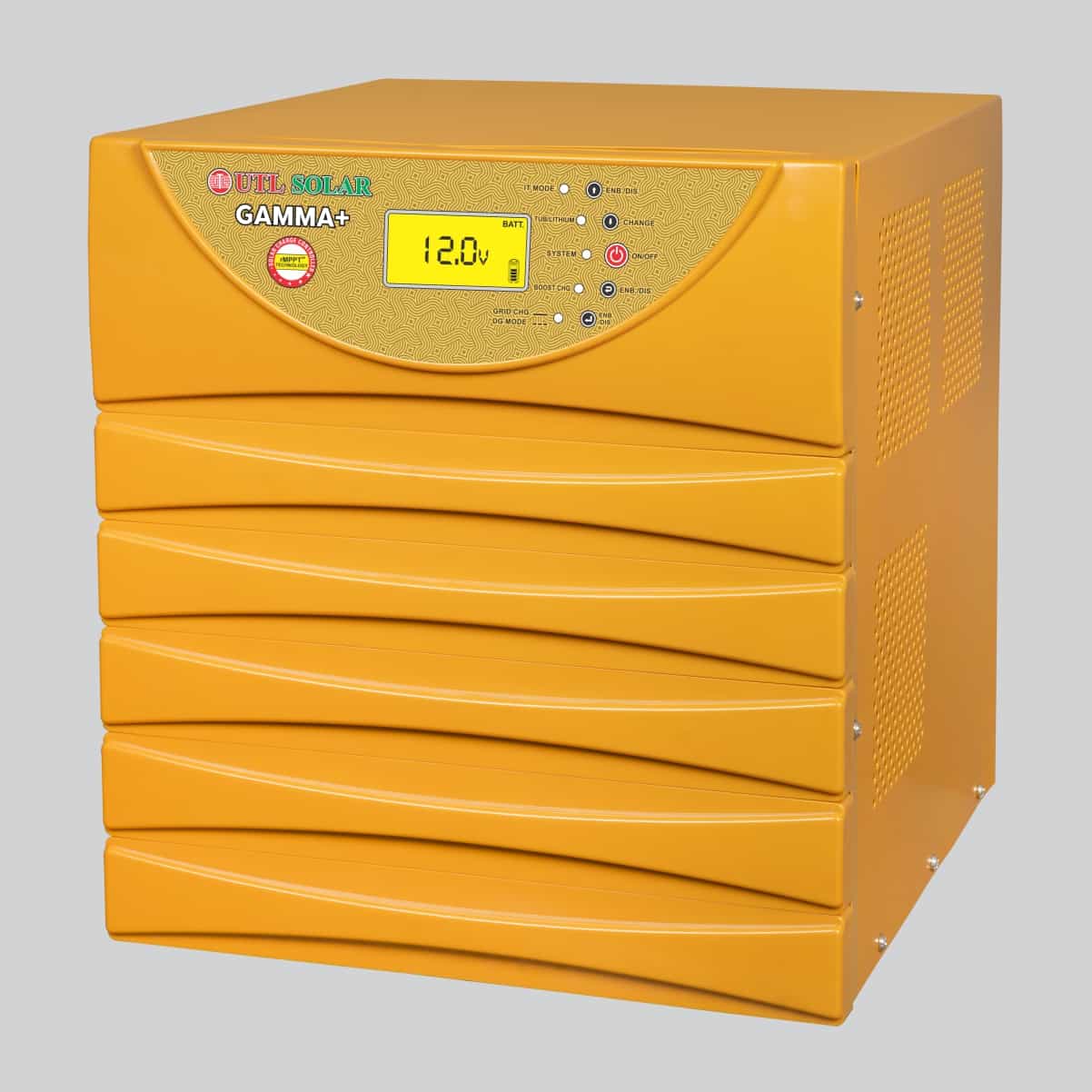

UTL’s 3kVA 24Volt rMPPT-based Gamma+ solar inverter is an integrated all-in-one solar solution, consists of grid charger, inverter, MPPT Solar Charger. It provides an uninterrupted power supply and gives preference to solar power over grid power.
The inverter comes with 3 priority selection modes– PCU, Smart (Default) & Hybrid. The priority in various modes will be:
Smart Mode (Default) – Priority Solar → Grid → Battery
PCU Mode – Priority Solar → 50% Battery → Grid
Hybrid Mode – Priority for load Grid →Solar →Battery
Useful Tips:
Before installing the inverter, read all of the instructions and warning labels on the unit.
For optimum operation of this Gamma+ solar inverter, please select the appropriate cable size.
Installation and wiring must be done carefully by a qualified person.
Avoid touching the connections while the inverter is in operational mode.
Do not install the inverter on flammable construction materials.
Make sure that the wires are tightly connected to avoid short circuits and overheating.
Before making final connections, ensure that the positive (+) is connected to the positive (+) and the negative (-) is connected to the negative (-).
Technical Specifications of 3kVA 24V Gamma+ Solar Inverter
The accessories and detailed specifications of 3kVA 24V Gamma plus solar inverter are listed below.
Particular
Description
Model
3kVA/24V Gamma+ Solar Inverter
Operating DC Voltage
24V
Nominal Output Voltage
220V
Nominal Frequency
50Hz ± 1%
Max. Output Current
9A
Output Waveform
Sinewave
Efficiency
>94%
Battery Charging Method
3 Stages (Bulk/ Absorption/Float)
Switches
Reset for system ON/OFF, UP, Down, Back, and Enter (For LCD Calibration)
Maximum PV Power Recommended
315/320/325W*6 or 390/425*5 (Parallel) (Total 2000W)
Switching Element
Mosfet
LED Indication
System ON, (IT Mode, SMF/Tub, Boost Chg, DG Mode, Grid Chg) Enable/Disable
Protections
Overload, Battery Low/High, Output Short Ckt, Battery Reverse (Fuse Blown), Over Heat @90°C ± 10°C , Over/Under Frequency, I/P HV, I/P LV, SPV High, SPV Low
Operating Temperature
0°C -50°C
